Kawasaki Bayou 250 Features
- 228cc air-cooled four-stroke engine is smooth and reliable
- Only ATV in its class with semi-independent rear suspension
- Shaft drive is reliable, quiet and very low maintenance
- Fuel gauge allows the rider to check the fuel level at a glance
- Electric starter is hassle-free and has recoil back-up
- Cargo racks can carry a combined weight of 110 pounds
- With an optional Kawasaki towing hitch, it can tow 450 pounds
Kawasaki Bayou 250 Specifications
Engine: Air-cooled, four-stroke, single cylinder
Displacement: 228cc
Bore x stroke: 69.0 x 61.0mm
Compression ratio: 8.9:1
Carburetion: Mikuni VM24SS
Ignition: Solid state with electronic ignition backup
Transmission: Five-speed-plus reverse with automatic clutch
Final drive: Shaft
Frame: Double cradle, steel
Suspension front/wheel travel: Single A-arm, independent/4.5
in.
Suspension rear/wheel travel: Semi-independent Quad-Link
with dual shocks/4.5 in.
Tires, front: AT21 x 8-9 tubeless
Tires, rear: AT22 x 10-10 tubeless
Brakes, front/rear: Dual drums/Drum
Overall length: 70.1 in.
Overall width: 40.2 in.
Wheelbase: 43.9 in.
Ground clearance, center of chassis/at rear axle: 7.5/6.1
in.
Seat height: 28.7 in.
Lighting: 25W x 2
Rack capacity, front/rear: 44/66 lbs.
Towing capacity: 450 lbs.
Fuel capacity: 2.6 gal.
Dry weight: 404 lbs.
Instruments: Neutral indicator, reverse indicator
Colors: Hunter Green, Aztec Red

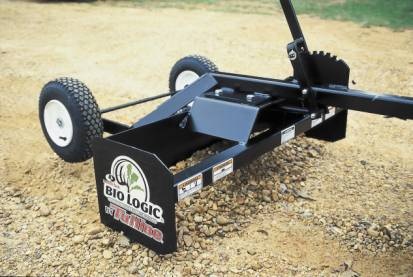

Ideal for many grading applications. Durable unit gives ATV the ability to move sand, gravel and dirt when a tractor is not available. Built with 1/8" steel plate and heavy 2" square steel tubing. Heat-treated cutting edge is mounted at the proper pitch angle for good cutting and dirt leveling. Lever controlled wheel transport system gives you 5 height options for load dispensing depending on substance and application.
Sturdy 34 x 48 in. expanded metal deck with a 1000 lb. load capacity. 16 ga. steel tube frame, stake pockets for side panels. Great for hauling hay, feed, or bulky items. 18 x 9.50 x 8 ATV wheels with roller bearings.

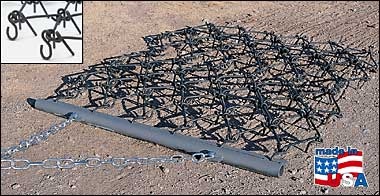

Improve the quality of your arena with this ATV Harrow Drag. Use
it to work seed, fertilizer or organic material directly into
the soil while eliminating parasites, removing dead matter and
allowing better penetration by water, air and nitrogen. This three-way
tool performs various types of farming operations: harrowing,
dragging, smoothing, floating and scarifying. Set it for light
or heavy penetration or turn it over and use as a drag mat. It
works on any terrain contour. Harrow teeth are rugged high-carbon
steel and the draw bar is extra-heavy-duty tubular steel to ensure
long life, even with hard use. Measures: 5' 6"L x 4' 6"
W. Weight: 124 lbs.
